Explosion-proof 85W
Product code: LL-DS-085
|
Power |
85W |
|
Luminous flux @ 4,000К |
10,600 |
| Luminous flux @ 5,000К | 10,600 |
| Efficacy | 124lm/W |
| Ingress protection | IP66 |

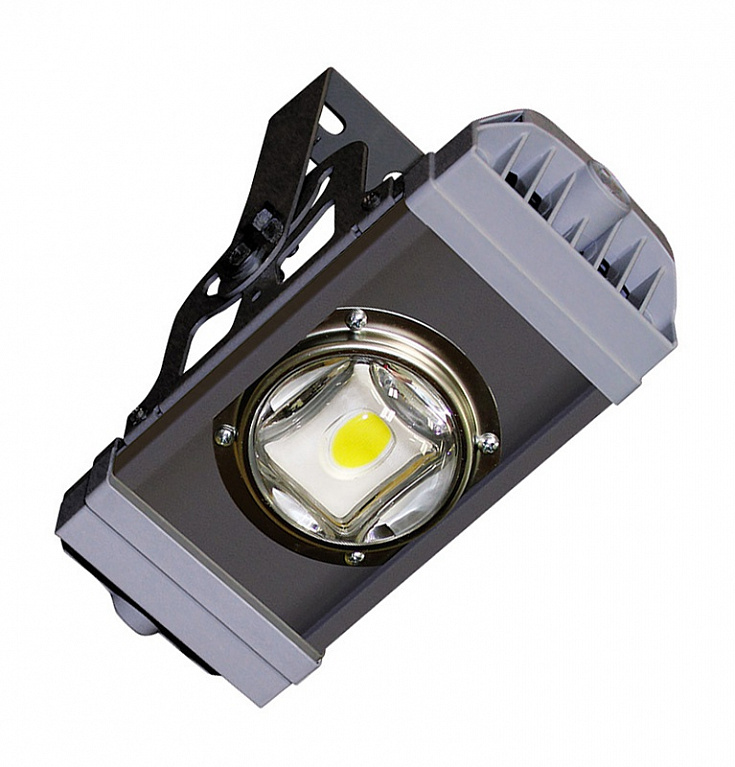

Explosion-proof 50W
Product code: LL-DS-050
|
Power |
50W |
|
Luminous flux @ 4,000К |
6,000 |
| Luminous flux @ 5,000К | 6,000 |
| Efficacy | 120lm/W |
| Ingress protection | IP66 |
Need help? Send us a message
Explosion-proof LED luminaires with a built-in PSU for petroleum, gas, chemical, metallurgical, woodworking and textile industries, as well as special machine and tool engineering. For installation in hazardous areas, zones 1 and 2 according to IEC 60079-10, IEC 60079-14.
Luminaires are covered by the following forms of explosion-proof protection:
- Ex m encapsulation according to IEC 60079-18;
- Ex d flameproof protection according to IEC 60079-1;
- Ex e increased safety according to IEC 60079-7;
- Ex t protection for explosive dust atmosphere according to IEC 60079-31.
Product codes for versions of a luminaire
- 1Ex mb e IIC T5 Gb/Ex tb IIIC 100°С Db;
- 1Ex mb d IIC T5 Gb/Ex tb IIIC 100 °С Db.
| Power | 50W |
| Voltage / Frequency | 176-276V/ 50Hz |

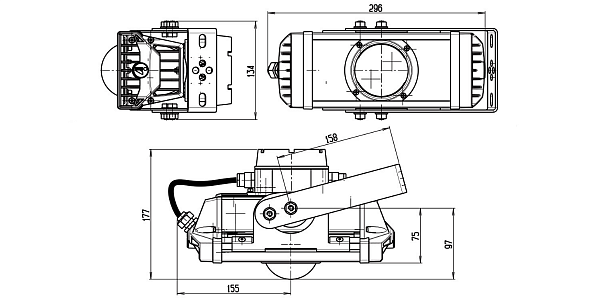

| Dimensions, LхWхH | 296x134x177 mm |
| Power factor | >92 |
| Luminous flux @ 4,000 К | 6,000 lm |
| Luminous flux @ 5,000 К | 6,000 lm |
| Efficacy | 120 lm/W |
| Light distribution | Direct |
| Number of LEDs, pcs | 1 COBs |
| Light distribution diagrams | wide (asymmetric) cosine deep focused |
| CRI, Ra | 70, 80, 90 |
| Ingress protection | IP66 |
| Operating temperatures | -40°С to +45°С |
| Luminaire lifecycle | 50,000 hrs |
| Electrical Safety Classification | I |
| Wire section | 3х0.75mm² |
| Weight | 2.8kg |
Explosion-proof 170W
Product code: LL-DS-170
|
Power |
170W |
|
Luminous flux @ 4,000К |
21,200 |
| Luminous flux @ 5,000К | 21,200 |
| Efficacy | 110lm/W |
| Ingress protection | IP66 |
Explosion-proof 40W
Product code: LL-DS-040
|
Power |
40W |
|
Luminous flux @ 4,000К |
5,100 |
| Luminous flux @ 5,000К | 5,100 |
| Efficacy | 130lm/W |
| Ingress protection | IP66 |
Explosion-proof 50W
Product code: LL-DS-040-1104
|
Power |
50W |
|
Luminous flux @ 4,000К |
5 800 |
| Luminous flux @ 5,000К | 5 800 |
| Efficacy | 116lm/W |
| Ingress protection | IP66 |
